10ft Fixed Glazing Observation Unit
$3,250.00

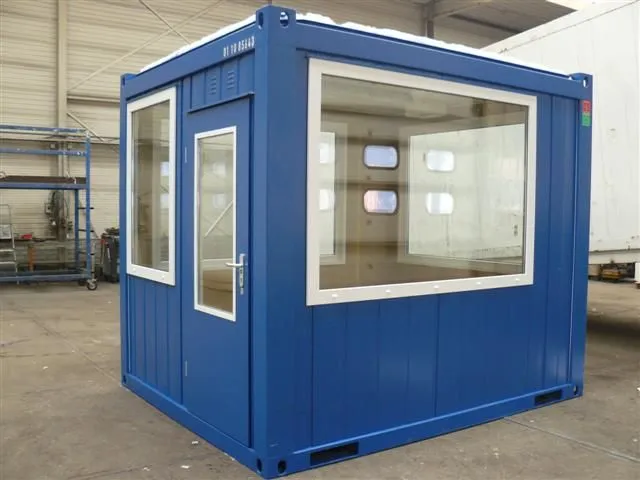

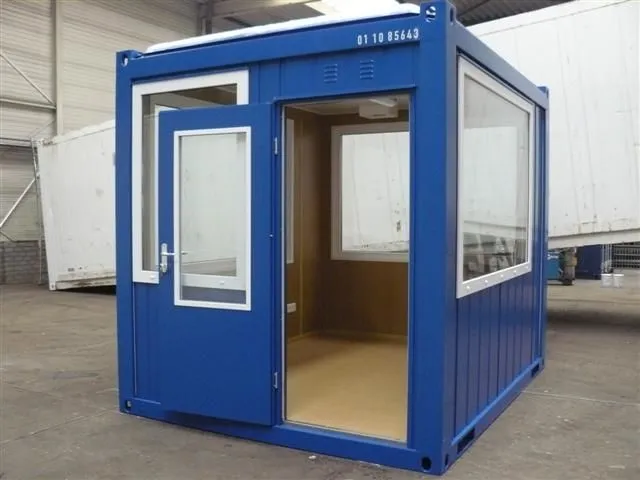

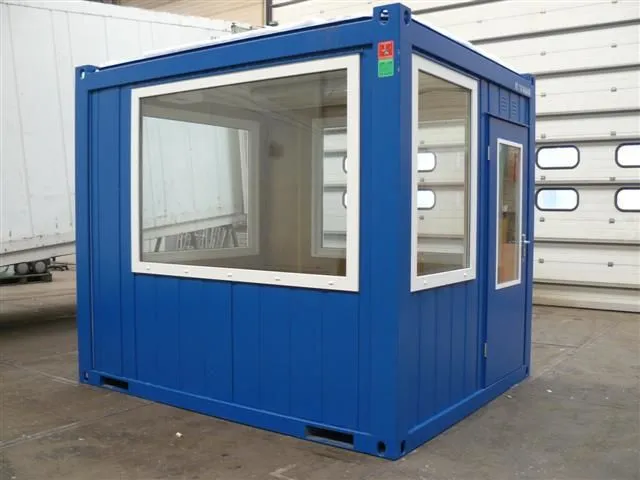

The 10ft Fixed Glazing Observation Unit is a compact modular steel unit designed for observation, administration, site supervision, security, gatehouse, and workspace applications. Large fixed-glazed windows provide visibility from multiple sides, while the enclosed interior can be used for a variety of commercial, industrial, municipal, and construction site applications.
Its compact dimensions allow the unit to be positioned in locations where available space is limited while remaining compatible with standard handling equipment.
Key Features
- 10ft modular observation unit
- Mild steel construction
- Four fixed-glazed windows
- Steel personnel entrance door
- Factory-installed electrical system
- Interior lighting
- 2 kW convector heater
- Insulated walls, floor, and roof
- PVC finished flooring
- Forklift pockets
- Stackable design
- Available in multiple RAL color options
- Suitable for office, security, and observation applications
Description
The 10ft Fixed Glazing Observation Unit is designed for applications requiring an enclosed workspace with clear external visibility. The unit incorporates four fixed-glazed windows together with a steel personnel door to provide access and visibility suitable for a variety of operational environments.

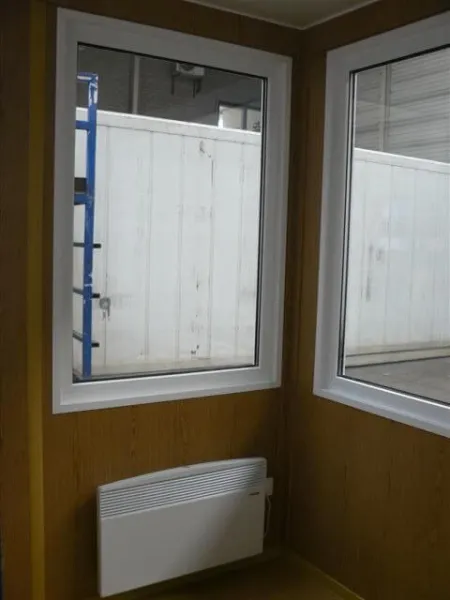

The structure is manufactured from mild steel and includes insulated wall, roof, and floor assemblies. Interior finishes consist of cement-bound chipboard flooring with a PVC surface together with interior wall finishes available in white or oak veneer, depending on the selected configuration.
A factory-installed electrical package includes an external electrical connection, interior lighting, and a convector heater. Electrical specifications may vary depending on regional requirements or project configuration.
Forklift pockets are incorporated into the base to assist with handling and positioning where applicable. The unit may also be relocated using compatible lifting equipment designed for modular buildings.
This observation unit is intended for stationary use and is not manufactured as a CSC-certified shipping container.
Technical Specifications
| Specification | Details |
|---|---|
| Unit Type | Fixed Glazing Observation Unit |
| External Length | 2.989 m |
| External Width | 2.435 m |
| External Height | 2.591 m |
| Internal Length | 2.795 m |
| Internal Width | 2.240 m |
| Internal Height | 2.340 m |
| Approximate Tare Weight | 1,924 kg |
| Construction Material | Mild steel |
| Windows | Four fixed-glazed windows |
| Door Type | Steel personnel door |
| Electrical Connection | External electrical connection |
| Lighting | One fluorescent light fixture |
| Heating | 2 kW convector heater |
| Floor Insulation | 60 mm |
| Wall Insulation | 60 mm |
| Roof Insulation | 100 mm |
| Floor Finish | Cement-bound chipboard with PVC surface |
| Interior Finish Options | White or oak veneer |
| Certification | Not CSC certified |
| Color Options | Available in selected RAL colors |
Compatibility / Intended Use
Suitable for a variety of commercial and industrial applications, including:
- Site supervision
- Construction site offices
- Security gatehouses
- Access control points
- Reception areas
- Administrative offices
- Manufacturing facilities
- Industrial sites
- Municipal facilities
- Infrastructure projects
- Monitoring stations
This unit is intended for stationary installation and may be handled using compatible forklifts, cranes, or other lifting equipment designed for modular buildings.
Package Includes
- One 10ft Fixed Glazing Observation Unit
- Four fixed-glazed windows
- Steel personnel door
- Factory-installed electrical package
- Interior lighting
- 2 kW convector heater
- Insulated floor, walls, and roof
- PVC finished flooring
- Forklift pockets
